ESP32 WROOM Pin Name High Resolution

In this post, we will provide the pin name of ESP32 WROOM module in high resolution.

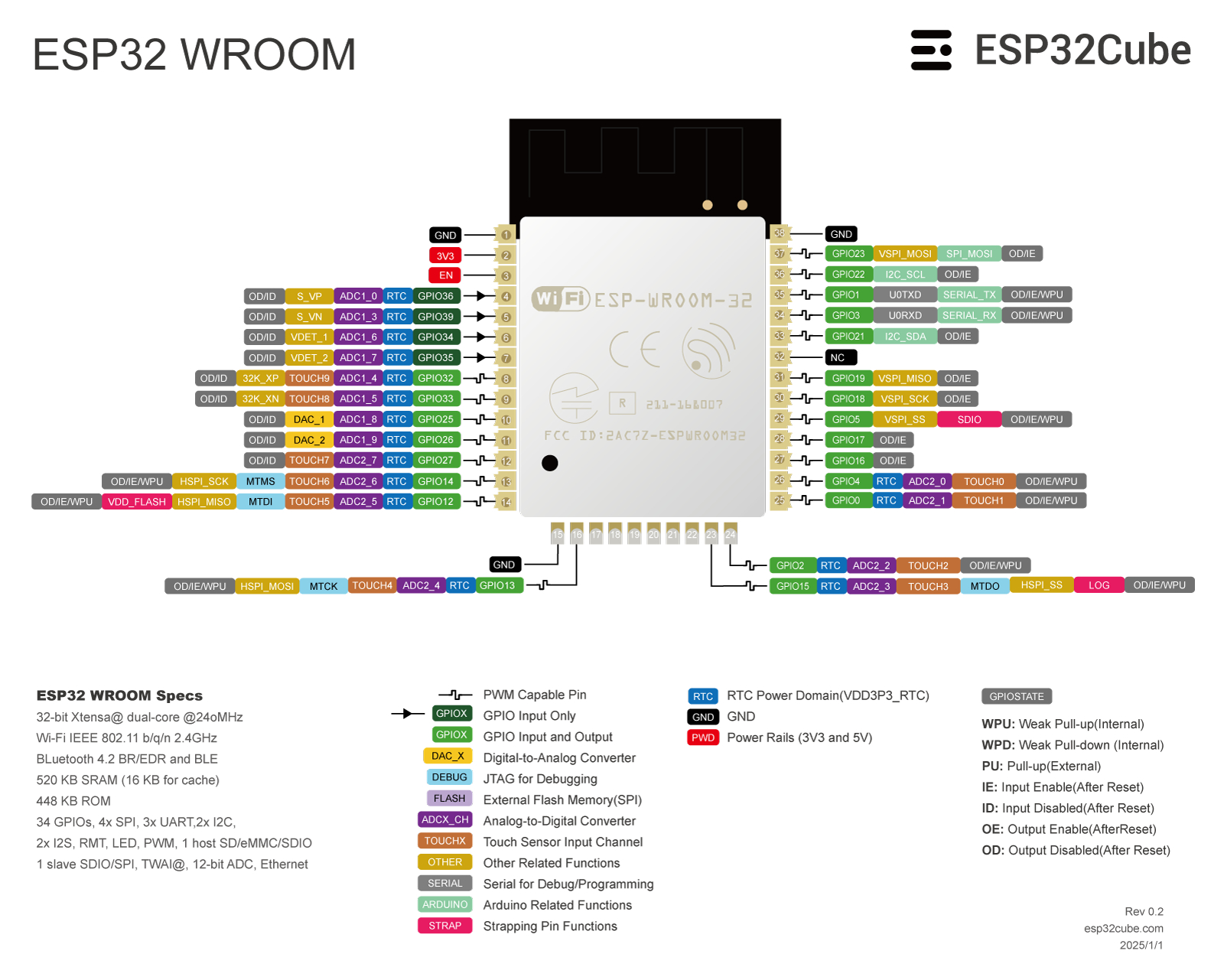

ESP32 WROOM Module Pin Name

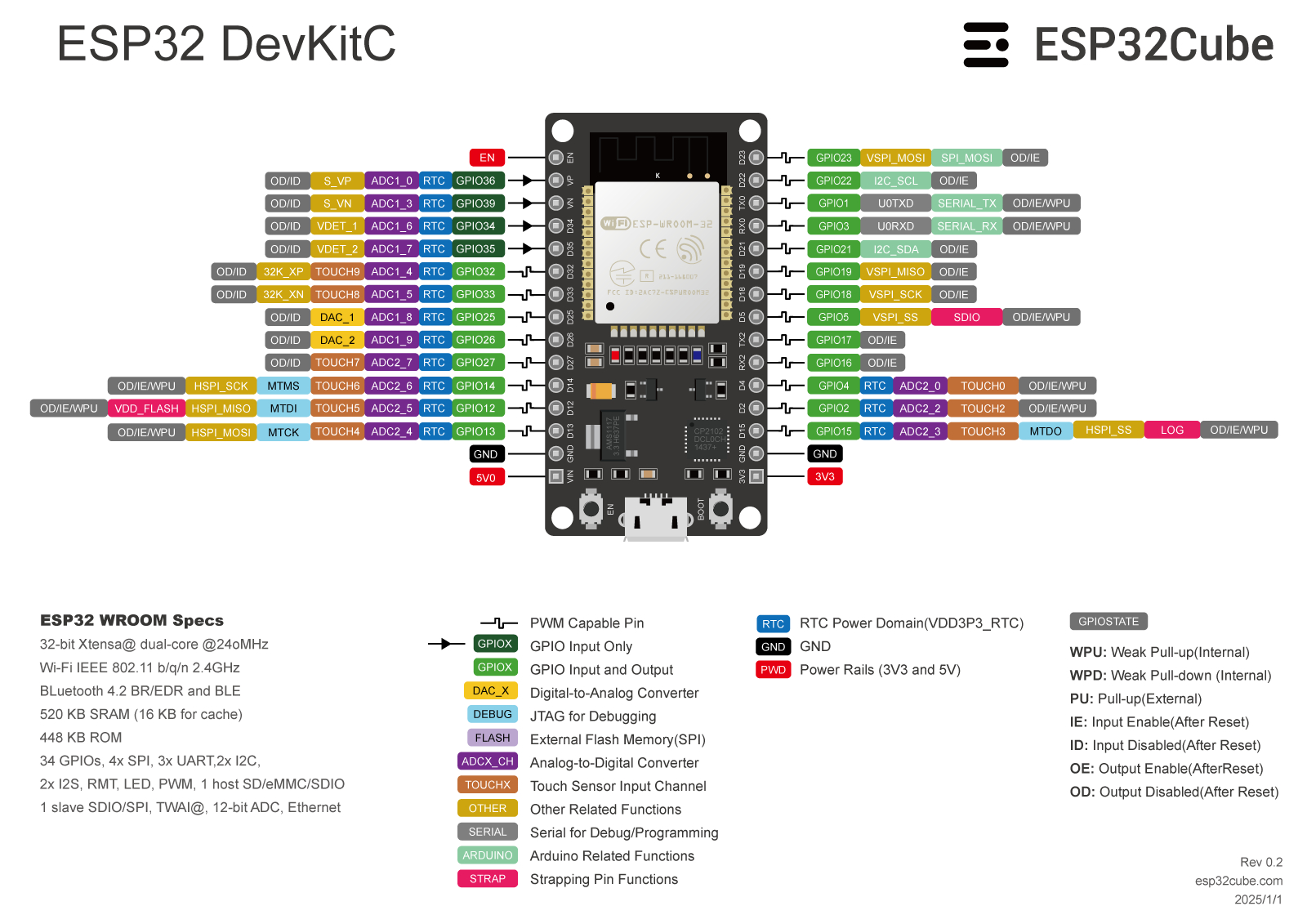

ESP32 DevKitC Development Board Pin Name

When using this diagram, ensure it matches your specific ESP32 WROOM module version, as pin configurations may vary between different models.

And some of ESP32 development boards may have different pin account and pin names, so please refer to the documentation provided by the manufacturer for the correct pin names.

The pdf files can be downloaded from the following link:

ESP32 WROOM Pin Name

ESP32 DevKitC Pin Name

If you want to know the detail function of each pin, please ref to ESP32 DEVKIT V1 Pin Referance
